Applicable Industry:
This machine is the special equipment used for punching and marking of connection plates in the field of steel tower, bridge, steel structure.
Product Feature:

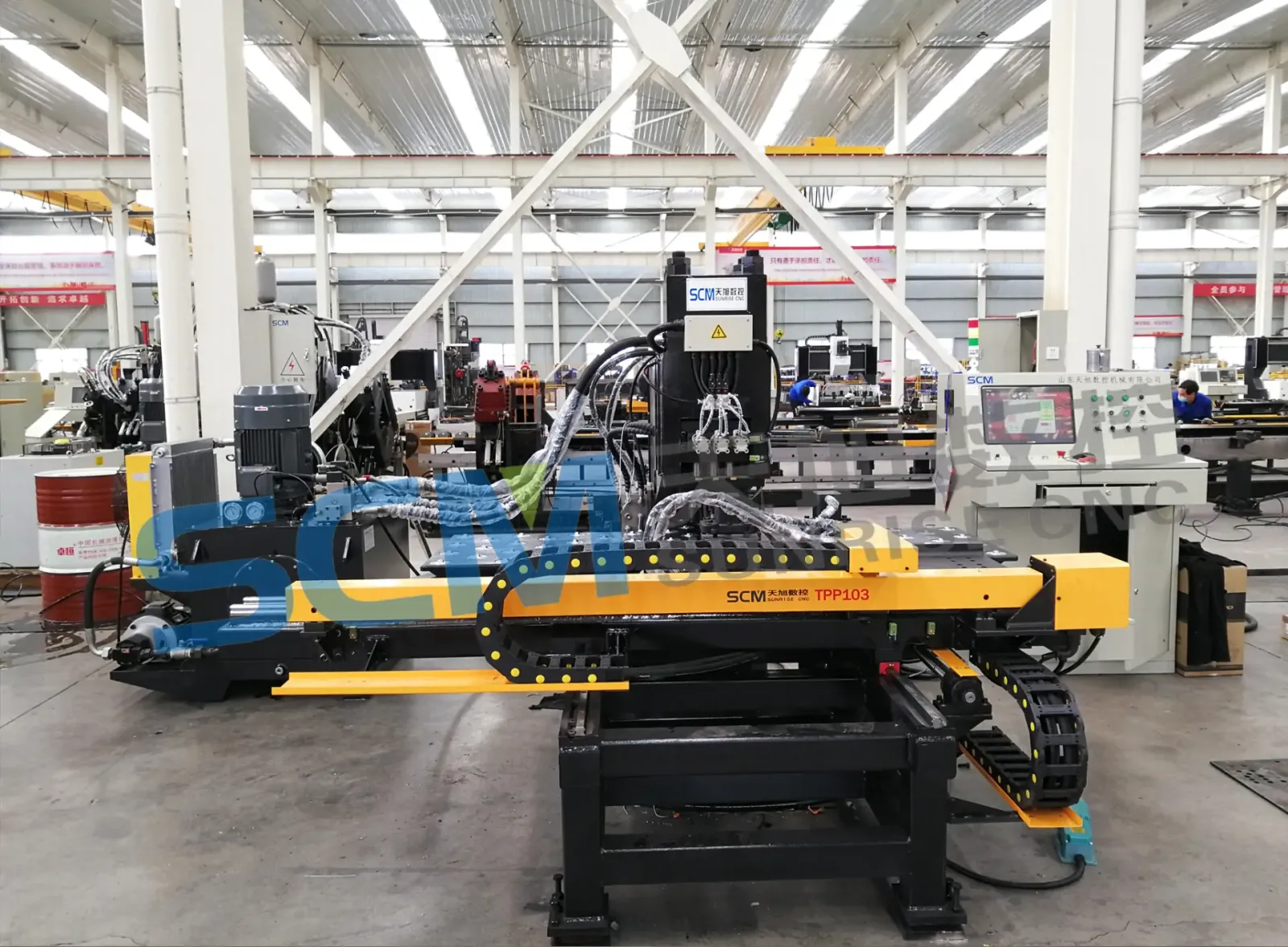

1. The machine-frame is made by C-type plate welding, with good rigidity and big handling space. TPP103/TPPR103 machine have three die-stations (two punching, one marking), TPP103-4/TPPR103-4 have four die-stations (three punching, one marking), automatic switching die-stations. Clamping system can be adapted to different workpiece, with reference block, and workpiece supported by rolling-ball working table. X & Y axis action controlled by servo motor and ball-screw driving and PLC, control the position of punching, so as to make the whole machining process automatically. Operator input the workpiece program, it can be used repeatedly
2. Adopt CNC technology, servo motor feeding, with high efficiency, stable workpiece precision.
3. Important functional components adopt modular assembly, easy to repair it.
4. Achieve punching and marking on the one plate.
5. Easy programming, can read CAD drawing and also can use the program generated by lofting software. It can read TEKLA lofting software files, such as NC1 format.
6. With self-diagnosis failures function.
7. X, Y axis are driven by servo motor + ball screw + linear guide, the precision is better.
